Model :LS-Mirror
Appearance standard: US Military Standard 60-40

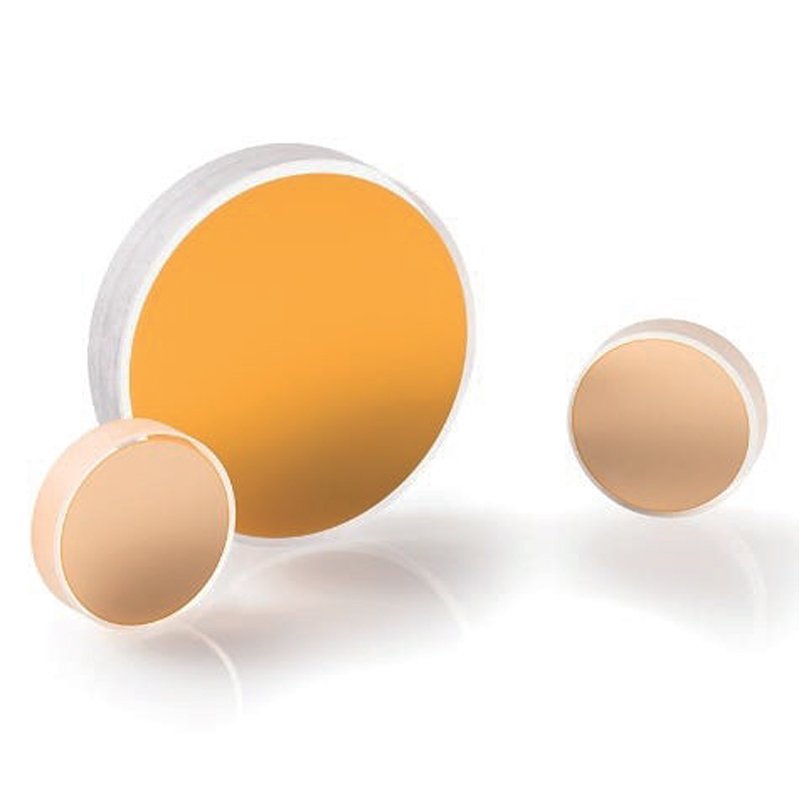

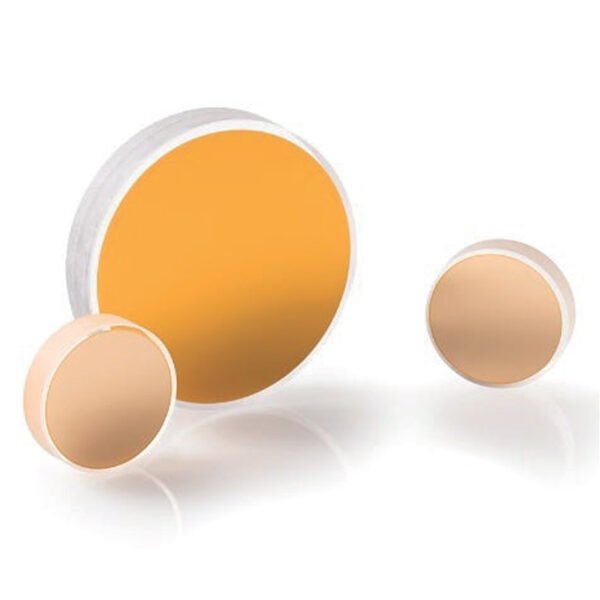

Introduction: When the light from a mirror is incident on the metal or dielectric film layer on the surface of the glass and causes reflection, it is called a surface mirror. The image reflected by it is undistorted and has no double images. It is processed from high borosilicate glass and can work normally in high-temperature environments. Reflective films are classified into: metal-coated films and dielectric-coated films. The surface of the metal film is coated with a protective medium film to prevent metal oxidation and reduce damage to the film layer.
| Category | Details |
|---|---|
| Material | K9, D263T, B270, BK7, Quartz, Silicon, Zinc Selenide, etc. |
| Shape | Square, Round, Special – shaped, etc. |
| Size Range | 1 – 500mm |
| Product Thickness | 0.3 – 10mm |
| Surface Parallelism | <2 arcmin |
| Clear Aperture | 95% |
| Environmental Test | MIL-STD-810F |

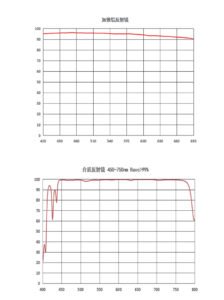

| Coating Type | Band and Reflectivity Details |
|---|---|
| Aluminum Coating | 250 – 450nm@R>94%；450 – 2000nm@R>90% |
| Silver Coating | 2um – 20um@R>95% |
| Gold Coating | 0.6 – 20um@R>96% |
| Laser Reflector | 470nm/532nm/650nm/808nm/1064nm/10.6um R>99.5% |
| Dielectric Reflector | 400 – 700nm/650 – 1200nm R>99% |
