| Core Items | Detailed Parameter Indicators |
|---|---|
| Display Size | 0.71 – inch screen |
| Display Resolution | 1920*1080P |
| Image Sensor | MCCD 1/1.8 |
| Minimum Night Illumination | 0.0001 LUX |
| Detection Distance | For objects of human – size at night, greater than 50 meters |
| Field of View Angle | Horizontal: 66.5, Vertical: 52 |
| Video Imaging Color | Color imaging, non – green |
| Objective Lens Focal Length | 8MM |
| Eyepiece | 10X optical, aperture diameter 22MM |
| Sensing Wavelength | 100 – 820nm |
| Magnification | 1X |
| Core Voltage | 3.7V – 12V |
| Eyepiece | 10X 22MM aperture, diopter adjustment |
| Core Power Consumption | 1.6W |
| Main Unit Size | To be determined |
| Bare Machine Weight | 390g |
| Operating Temperature | -40° – 70° (military – grade) |
| Waterproof Rating | IPX6 |
| Mounting Method | FAST squid – fin, swallow – tail rail, handheld use |
| Packaging Box | 270MM220MM110 |
| Accessories List | Charger (optional FAST dump bucket), FAST adapter, instruction manual |

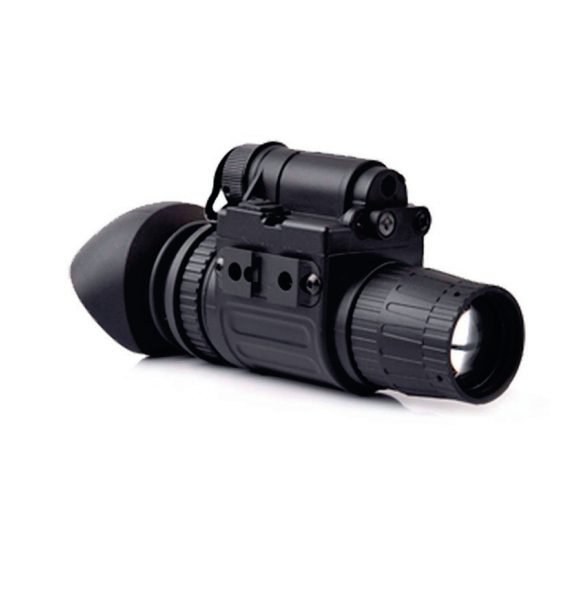

| Parameter | Value |
|---|---|
| Magnification | 1X |
| Objective Lens | 25mm (Optional) |
| Image Intensifier Grade | ORPHA 66G Quasi – 3rd Generation (Optional 2nd Generation, 2nd Generation +, etc.) |
| Weight | 461g (770g with helmet) |
| Weight of 4 – times Lens | 296g |
| Volume | 150x121x58mm |
| Resolution (Line – pair) | 60 – 72lp/mm |
| Signal – to – Noise Ratio (dB) | 21 – 26 |
| Optical Sensitivity (μA/lm) | 650 – 850 (Determined by image intensifier tube) |
| Adjustment Range of Objective Lens (m) | 0.25 – ∞ |
| Wavelength of Auxiliary Light Source (nm) | 808nm & 850nm |
| Image Color | Green |
| Adjustment Range of Eyepiece Diopter (Diopter) | +5° – 5° |
| Power Supply Voltage | 2.0 – 4.2V |
| Battery Type | CR123 Lithium Battery x1 / AA Ordinary No.5 Battery x2 |
| Operating Temperature | -40/+60 °C |
| Storage Temperature | -30/+50 °C |
| Relative Humidity | 98% |
| Field of View | 40° |
| Standby Time | 80H/40H (Infrared Off/On) |
| Service Life | 10000H |
| Waterproof Rating | IP66 |
