- Interference frequency range: It can interfere with conventional unmanned aerial vehicle communication image transmission frequency bands such as 1.5GHz, 2.4GHz, 5.8GHz, and can also be extended to other frequency bands;
- Precise Strike: Cone angle launch, can also be equipped with an eyepiece to achieve precise strike (optional thermal aiming);
- Low radiation: With a total power of 45W and patented electromagnetic isolation technology, it causes zero radiation damage to users;
- Easy to operate: The host control panel is equipped with an independent rotary switch, which can be set to enable single or multiple frequency bands as needed;
- Network communication: Built in remote management and dispatch command system, which can communicate in real-time with the command platform;
- Built in lithium battery: The weight of the built-in lithium battery is 650g, and the direct insertion charging hole is safe and efficient.
1.1.1 performance index

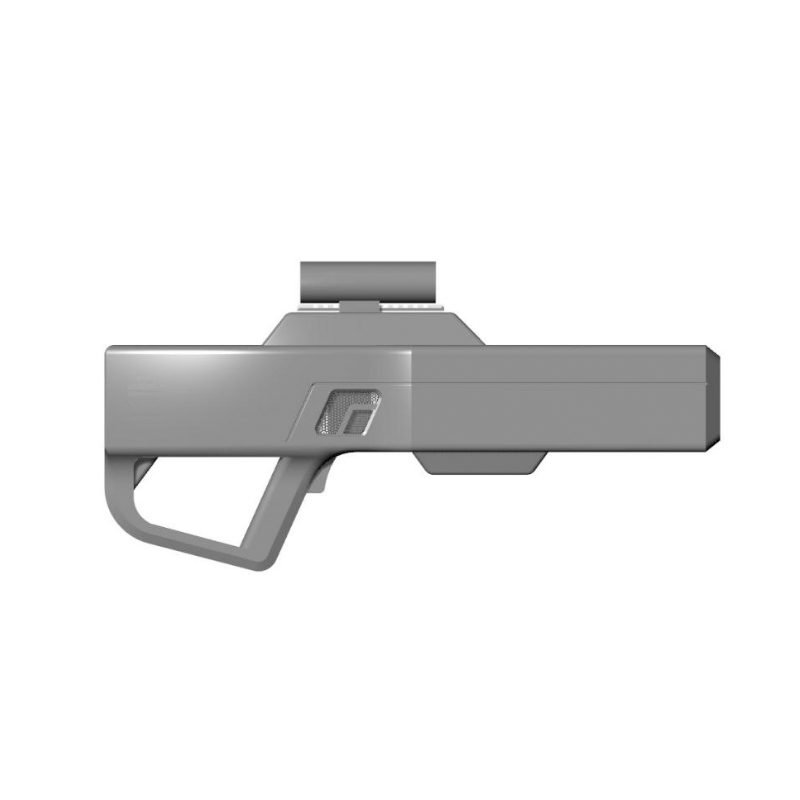

Table 6 Performance Indicators of HFC_JM01 Handheld Interference Gun
| index | parameter |
| Interference frequency band | 1500MHz：1559-1606MHz
2400MHz：2405-2483MHz 5800MHz：5725-5850MHz 900MHz: 922.7-927.7MHz (optional) |
| Target audience | Flight control link, navigation signal |
| Interference accuracy | Horizontal 35 ± 5 °, pitch 35 ± 5 ° |
| interference distance | ≥ 1000 meters |
| endurance | Standby: 48 hours;
Strike: 1 hour |
| Host size | ´´632710cm |
| Weight | 2.1Kg |
1.1.2 application
Various large-scale gatherings, sports events, and visits by important leaders can be freely combined using single or multiple machines, or coordinated with the overall scheduling of the command center.
