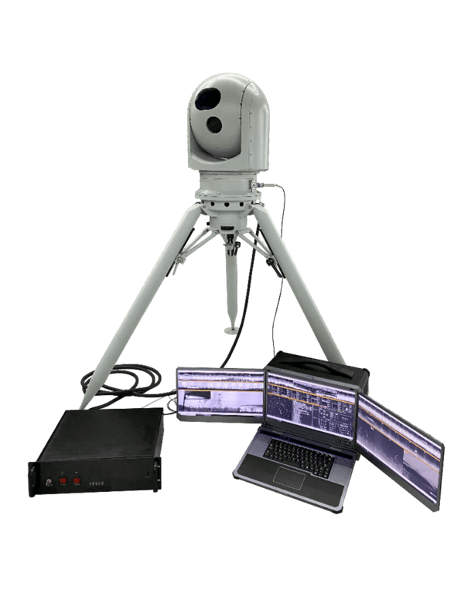

SLS-R420S photoelectric panoramic warning system

Uncooled long wave infrared thermal imager
Detector type: Vanadium oxide uncooled infrared focal plane detector; Working band: 8-14um; Resolution: 1280 * 1024: Field of view angle: 8.8 ° x7 °:
Detector frame rate: 30Hz.

Rotating tower
Directional range: 360 degrees continuous:
Pitch range: -10~+85 °: Maximum search speed: 180 °/s: Position pointing accuracy: 0.3mrad: Maximum tracking angular velocity: 40 “/s; Maximum tracking angular acceleration: 20 °/s2: Tracking accuracy: better than 1mrad.

major function
Target search function: equipped with long-distance, large-scale, target search and detection functions;
Target detection function: equipped with intelligent analysis and judgment functions for target detection, aviation construction, and threat level;
Target tracking and ranging: equipped with high-precision target tracking and target distance measurement functions:
Target guidance function: equipped with target guidance data output function, which can guide other systems to track and dispose of targets;
Integrated display and control function: Control the system to achieve display, storage, and various human-computer interaction functions.
White light camera,
Image sensor: Domestic CMOS:
resolving power: 1280×1024@50fps ;
Field of view angle: 5.4 ° x4.4 °:
Black self/color: black and white.
Multi target search and tracking capability
Search mode: ≥ 20 batches: Tracking mode: ≥ 1 batch.
Size and weight
Rotating tower: Medium 420x640mm (diameter x height), weight not exceeding 50kg Display and control terminal: 390x310x230 (length x width x height), weight not exceeding 5kg:
Electronic box: 2U standard chassis, weighing no more than 3.5kg
